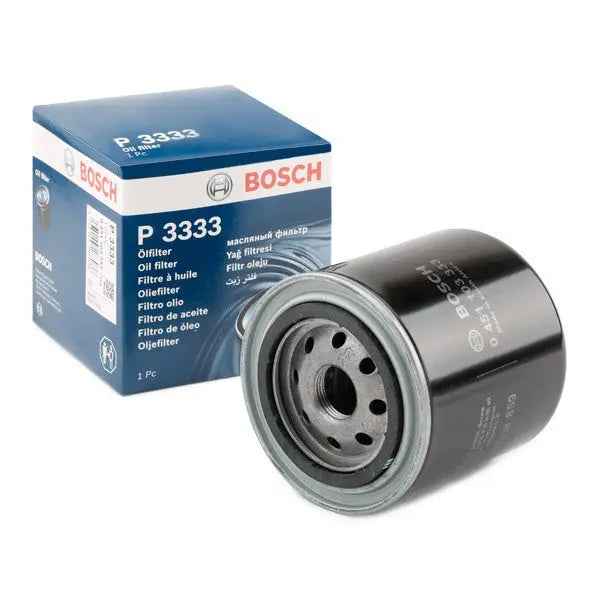

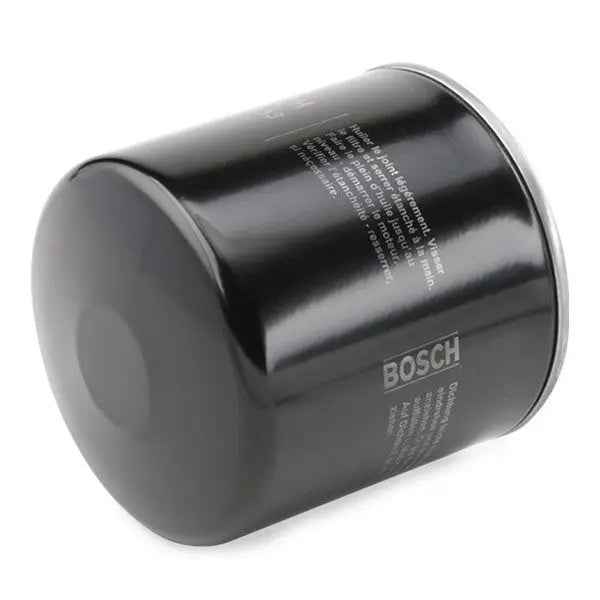

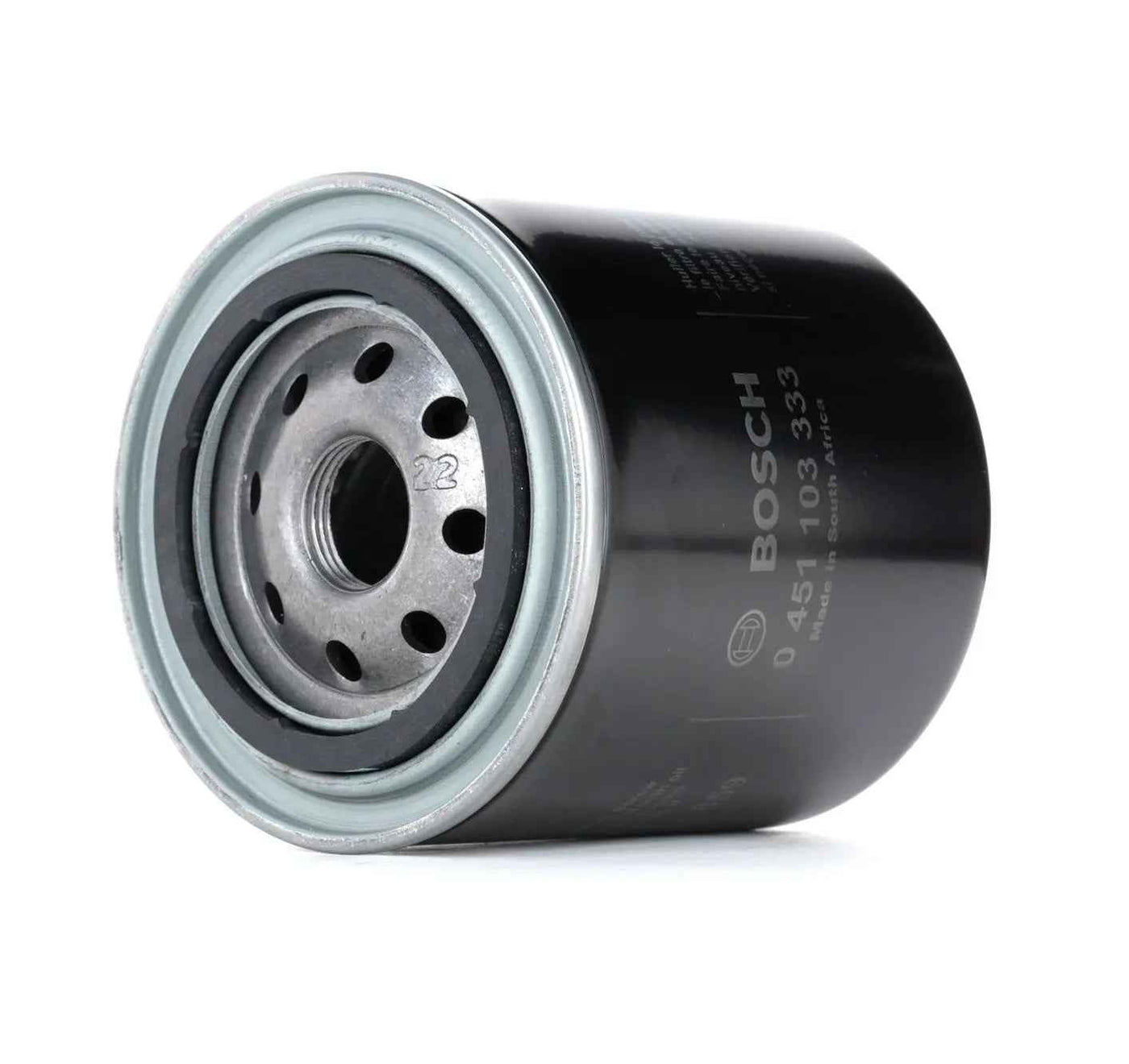

Bosch oil filter (spin-on filter M22 x 1.5) Camaro, Challenger & more

Overview

An oil filter is not something you think about much—until it's missing or the wrong one is installed. This Bosch spin-on filter with an M22 × 1.5 thread is a classic full-flow oil filter, as used in a whole range of US V6 and V8 engines. From Camaro and Challenger to Silverado, Tahoe, and RAM 1500, through to Grand Cherokee and Chrysler 300 – the range for Bosch filters of this design is intentionally kept wide because the thread and design are identical for many GM, Stellantis, and Chrysler engines. This is precisely what often makes identification online confusing – which is why we have listed the eligible engines we are aware of here and will tell you honestly where you should double-check for yourself.

New from Bosch, under the manufacturer number 0 451 103 333 (EAN 3165143187036). Not a replica, not a no-name part from some collection bin, but an original product with clean workmanship and a defined opening pressure at the bypass valve.

Features & Benefits

• Spin-on filter, can be screwed on directly – no additional filter housing required
• Thread M22 × 1.5, standard size for many GM and Chrysler/Stellantis V6/V8 engines
• Bypass valve opens at 1 bar – protects the engine from oil starvation when the oil is cold or the filter element is clogged
• Compact design: 97 mm height, 93 mm diameter – generally fits into the engine bay layout without any problems
• Sealing ring with 72 mm outer and 63 mm inner diameter ensures a secure fit without oil seepage
• Brand-name product from Bosch, new, no used-part uncertainty

Compatible Vehicles

According to our research, this filter is used in the following models, among others – however, exact fitment always depends on the specific engine and model year:

• Chevrolet Camaro 6.2L V8
• Chevrolet Corvette 6.2L LS3 V8
• Chevrolet Silverado 1500 5.3L / 6.2L V8
• Chevrolet Tahoe, Suburban, Avalanche 5.3L V8
• Chevrolet Colorado 2.8L Duramax Diesel
• Chevrolet Trailblazer 4.2L I6
• GMC Yukon 5.3L / 6.2L V8
• Cadillac CTS 2.0L Turbo / 6.2L V8, Cadillac Escalade 6.2L V8
• Dodge Challenger 5.7L HEMI / 6.4L V8
• Chrysler 300 3.6L V6 / 5.7L HEMI V8
• Chrysler Aspen 5.7L HEMI V8, Chrysler Sebring 2.4L I4
• Jeep Grand Cherokee 3.6L V6 / 5.7L HEMI V8
• RAM 1500 3.6L Pentastar V6 / 5.7L HEMI V8, RAM 2500 5.7L HEMI V8

This is a broad list across several brands and model years – which is exactly why a model designation alone provides little certainty. The same model name may have been delivered over the years with different engines and sometimes different oil filter threads.

Installation & Notes

As always, when changing the filter: the engine should not be hot, let the old oil drain out beforehand, and loosen the old filter with the appropriate filter wrench (spin-on filters are often surprisingly tight). Before attaching the new filter, coat the sealing ring thinly with fresh oil – this prevents the sealing ring from twisting or tearing when tightened and makes the next change easier. Tighten by hand until the sealing ring makes contact, then tighten another three-quarters to a full turn – do not use the filter wrench to crank it down brutally tight. After the oil change, let the engine run briefly, check for leaks at the filter, and then check the oil level.

Since this filter fits across several brands and model years, we recommend that you send us your vehicle identification number (VIN). We will then check based on the VIN whether your specific engine is compatible with this Bosch filter before you order. This saves you the hassle of returns and saves us both unnecessary waiting time. Request parts via VIN – we will tell you honestly if it fits.
